Satomi Nishikigoi

Evolution Aqua Surge Filter + UV

Name: Evolution Aqua Surge Filter + UV
Brand: Satomi Nishikigoi
SKU: FS330
Price: 299.00 GBP
Availability: InStock

£299.00 GBP

Sale Sold out

Taxes included.

Quantity

The Surge Filter is an innovative filter that will help to deliver crystal clear, healthy water for ponds up to 5,000 Litres. There are no dirty sponges or foams to clean so you get to keep your hands dry, giving you more time to enjoy your pond.

Key Features

Keep your hands dry - Foam free, easy self-cleaning technology.
More time to enjoy your pond - Reduces filter cleaning and maintenance.
Crystal clear and healthy water - Enhanced filtration with K+Media and integrated UVC

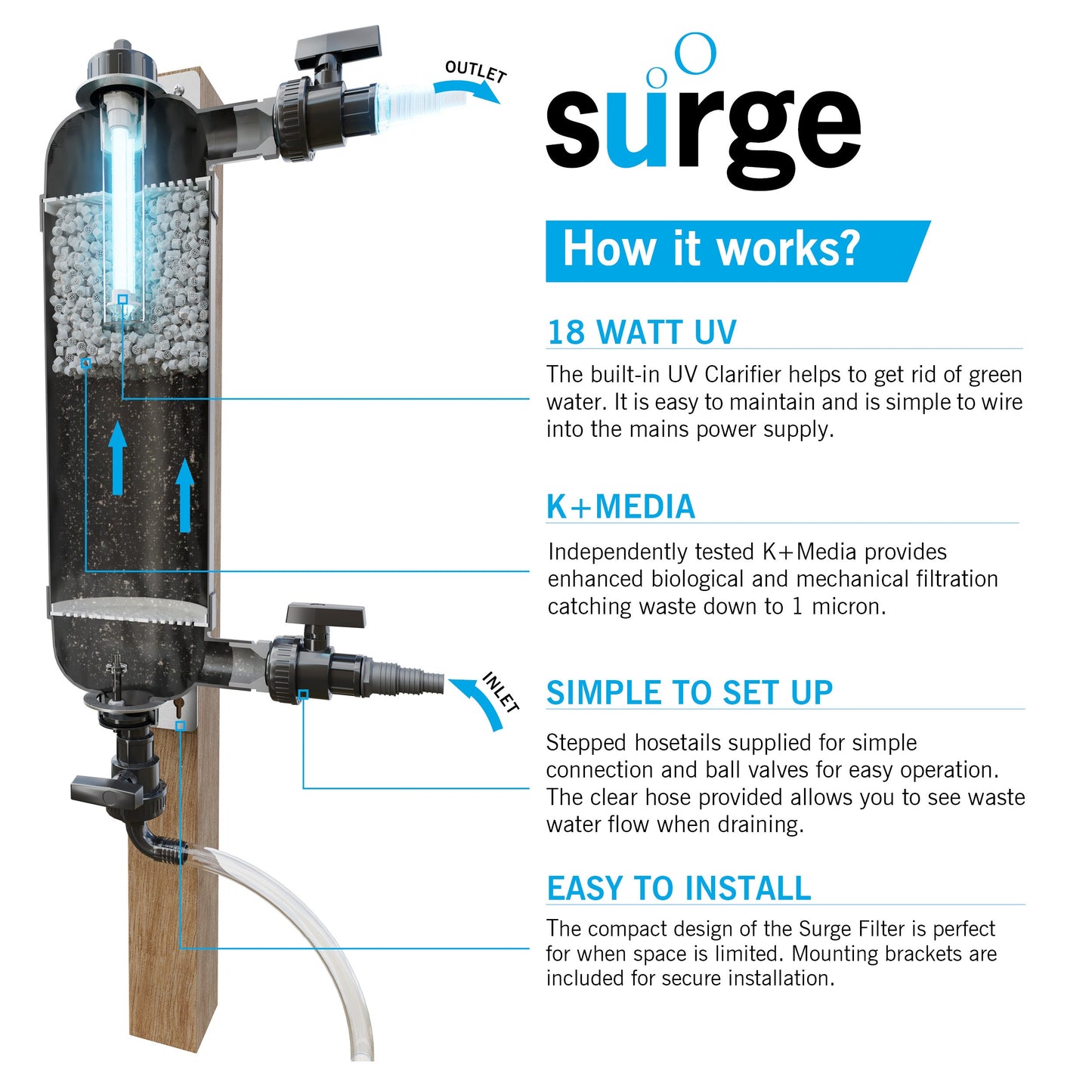

As pond water is pumped up through the Surge Filter the K+Media becomes a mechanical barrier that traps debris as it flows through. Waste particles remain trapped within the K+Media until they are dislodged and flushed away during the patented Air Clean Technology cleaning process.

Air Clean Technology uses open cell K+Media and air to clean the filter providing a low energy and cost-effective solution. With the pump off, ball valves closed, and waste valve open, air is drawn into the filter. As air and water mix inside the filter, the media starts to move chaotically, dislodging the trapped waste. Dirty water then exits the bottom of the filter via the waste line, leaving clean media.

Installing the Surge Filter

The Surge Filter is easy to install and is simple and quick to clean, by way of Evolution Aqua’s patented Air Clean Technology. This unique air syphon design allows air to be drawn into the filter as it empties which causes the water to agitate, effectively cleaning the K+Media. There are no dirty sponges or foams to clean so you get to keep your hands dry, giving you more time to enjoy your pond.

TECHNICAL DATA

UK	EU	US
MAX POND SIZE	5,000 Litres	1,100 Gallons	1,320 US Gallons
INLET	¾”, 1”, 1¼”	20mm, 25mm, 32mm	¾”, 1”, 1¼”
OUTLET	¾”, 1”, 1¼”	20mm, 25mm, 32mm	¾”, 1”, 1¼”
WASTE	1”	25mm	1”
MAX FLOW RATE	3,500 lph	771 gph	925 US gph
OPTIMUM FLOW RATE	2,500 lph	550 gph	660 US gph
K+MEDIA SUPPLIED	4.5 Litres	4.5 Litres	4.5 Litres
WATER VOLUME IN FILTER	19 Litres	4.2 Gallons	5 US Gallons
