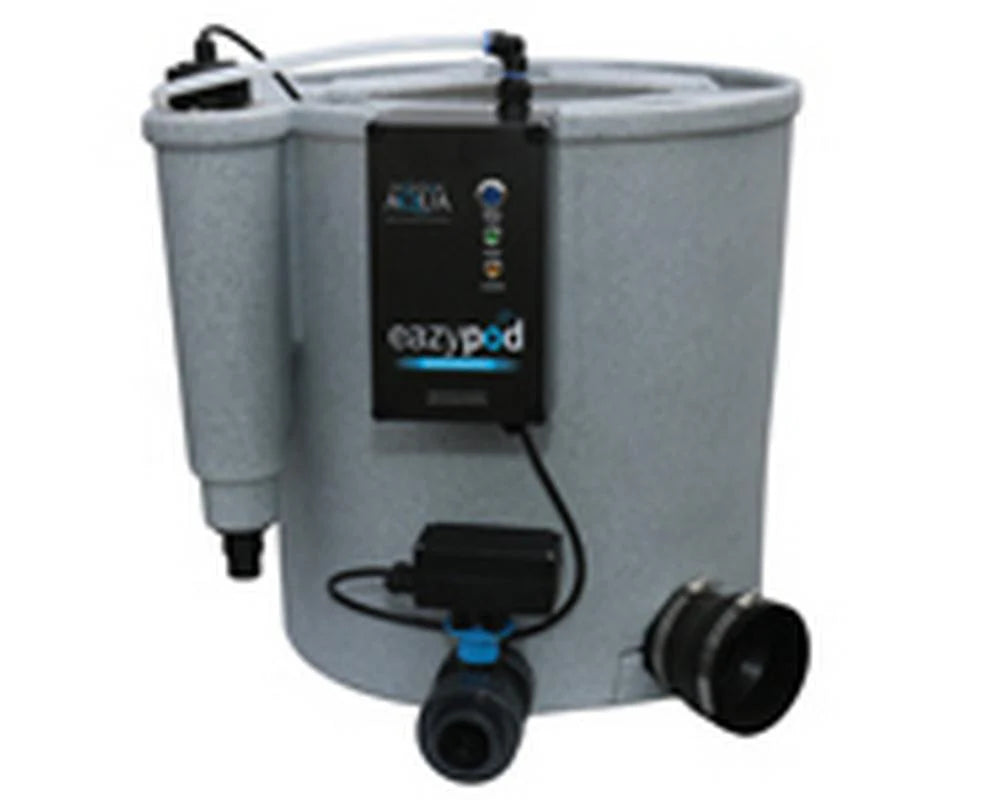

EazyPod UV Automatic

The Eazy Pod Automatic is a self-cleaning, mechanical and biological filter system for garden ponds up to 10,000 litres.

The integrated control box contains an adjustable timer which initiates a cleaning cycle automatically - meaning your filter will clean itself even when you’re not there!

Inside the control box, the electronic connector blocks control the automated waste valve, along with your choice of circulating pump (not supplied).

Crystal clear, healthy water is achieved by K1 Micro filter media, which also provides enhanced biological benefits by way of its protected surface area.

The Eazy pod UV Automatic features an integrated 18 Watt UVC built in to the inlet section of the filter, helping to clear green water.

How the Eazy Pod Automatic works.

The concept of the Eazy Pod Automatic is simple and yet innovative. Water enters via the inlet and passes over an 18 watt UV Clarifying bulb helping to kill any single celled algae in the water.

The water then enters the outer chamber, which runs around the entire circumference of the Eazy Pod. Between the outer chamber and the inner chamber, there is a stainless steel perforated screen. These perforations are situated in the lower half of the screen and around its entire face. This means that when the water passes from the outer to inner chamber, a downward and upward flow is created. This causes many of the larger solids to settle in the base of the outer chamber, due to the force of gravity.

The size of the perforations will not allow large mechanical waste to enter the inner chamber, thus acting as a first stage mechanical filter. The inner chamber holds 18 litres of static K1 Micro media. As the water enters the inner chamber, the fine smaller solids become entrapped in the K1 Micro. After passing through the K1 Micro, the clean water then rises and overflows into the inner return pipe. From here it returns to the pond via the return outlet.
